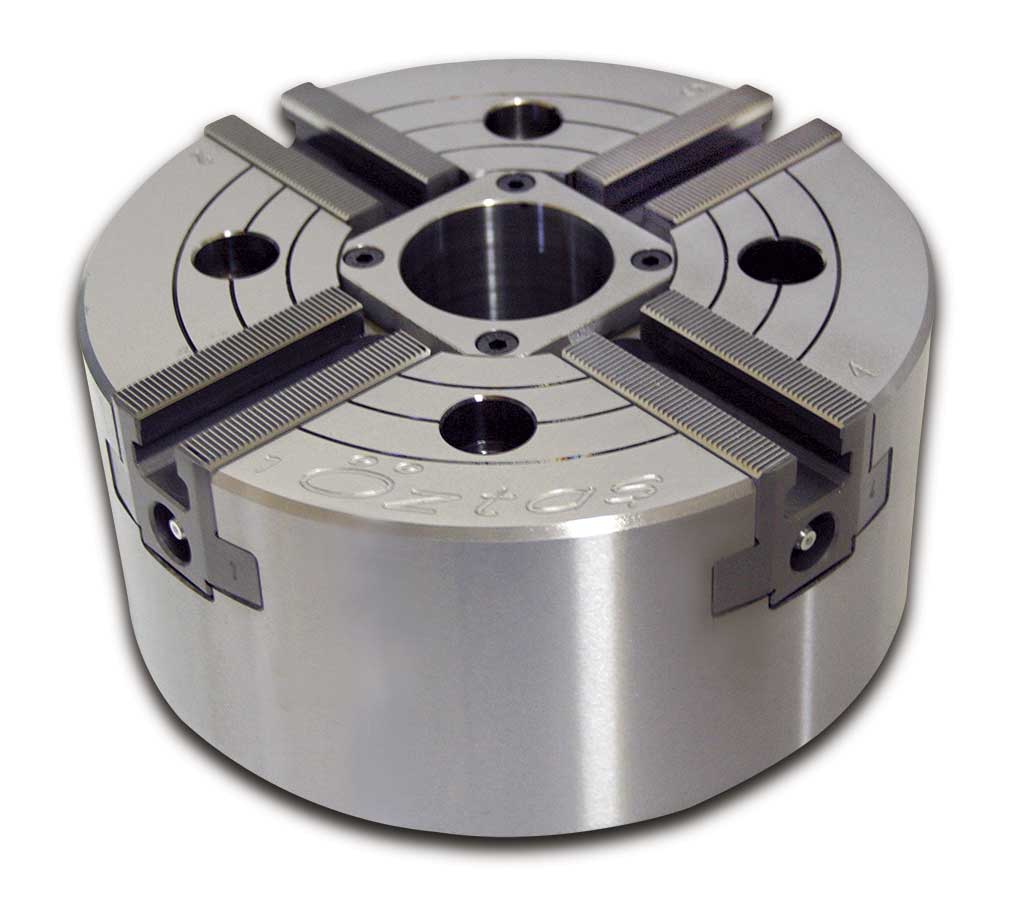

| AÇIK MERKEZ HİDROLİK AYNALAR |

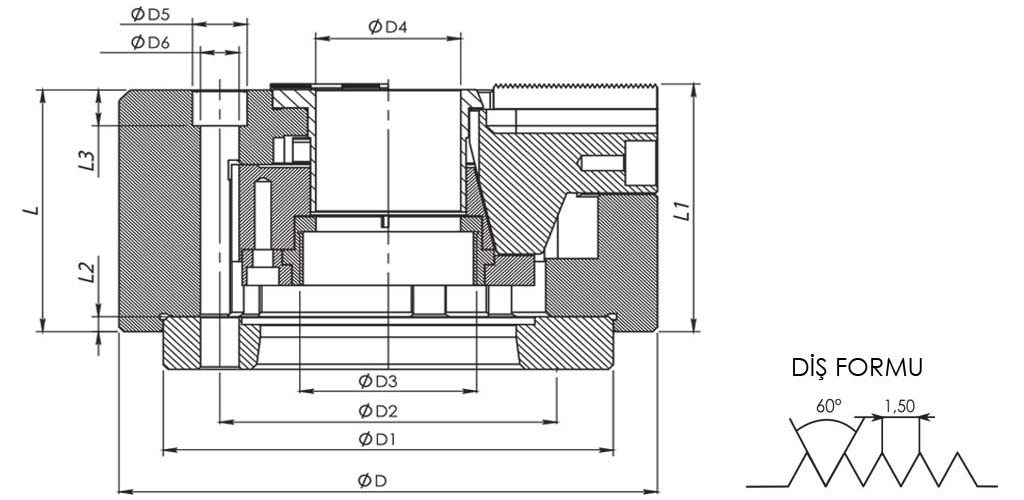

| Ø | D | D1 | D2 | D3 | D4 | D5 | D6 | L | L1 | L2 | L3 | L4 | L5 |
| 5 INCH | 135 | 110 | 83 | M40x1.5 | 30 | 17 | 12 | 60 | 62 | 5 | 115 | 23 | 10 |
| 6 INCH | 167 | 140 | 104.80 | M55x2 | 45 | 17 | 12 | 81 | 83 | 5 | 12 | 32 | 12 |
| 8 INCH | 207 | 170 | 133.40 | M60x2 | 53 | 20 | 13 | 92 | 94 | 5 | 13 | 37 | 14 |
| 10 INCH | 254 | 220 | 171.40 | M85x2 | 75 | 25 | 17 | 133 | 115 | 5 | 18 | 42 | 16 |
| 12 INCH | 304 | 220 | 171.4 | M93x2 | 60 | 25 | 17 | 110 | 112 | 5 | 18 | 52 | 21 |
| 15 INCH | 381 | 300 | 235 | M130x2 | 117.5 | 32 | 21 | 133 | 135 | 6 | 22 | 62 | 25 |
